Genuine Spare Parts & Factory Services
Ensure non-stop productivity and maximum efficiency with OEM ALUP filters, separator elements, and official Rovex compressor lubricants.
Specialized Rotary Compressor Lubrication
Rovex Industrial Compressor Lubricants
Genuine Rovex Rotojet oils for oil-injected and oil-free rotary screw compressors, with official data sheets for M 46 and S 46.

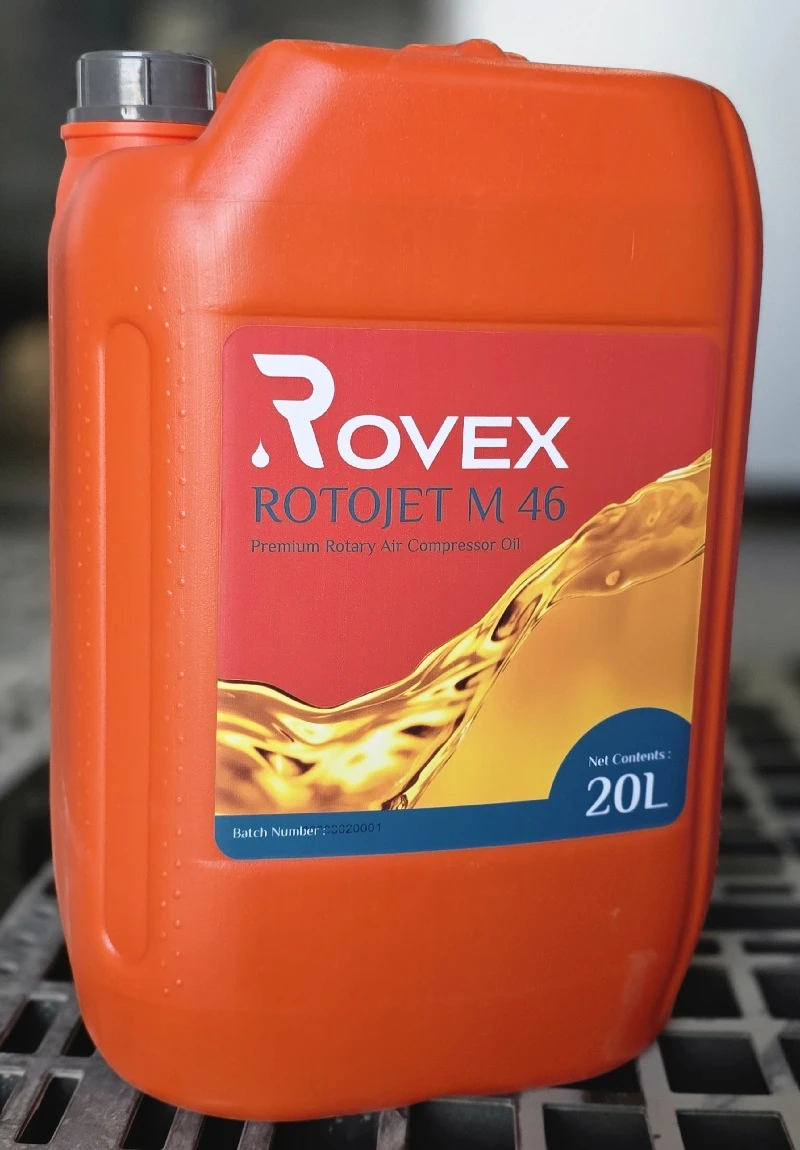

Rovex Rotojet M 46 (20 L)
Mineral-based ISO VG 46 compressor oil for oil-injected rotary screw compressors running 2,000-4,000 hours a year in mild to demanding conditions (ambient 0-35 °C). Viscosity 46 mm²/s at 40 °C, viscosity index 110, pour point -36 °C. Anti-wear and corrosion protection, good water separability, low foaming and low oil carry-over. Complies with ISO 6743-3 class L-DAH. Supplied in 20 L packs.
Rovex Rotojet M 68 (20 L)
ISO VG 68 grade of the Rovex Rotojet M series for oil-injected rotary screw compressors whose manufacturer specifies an ISO VG 68 oil. Technical data sheet available on request.

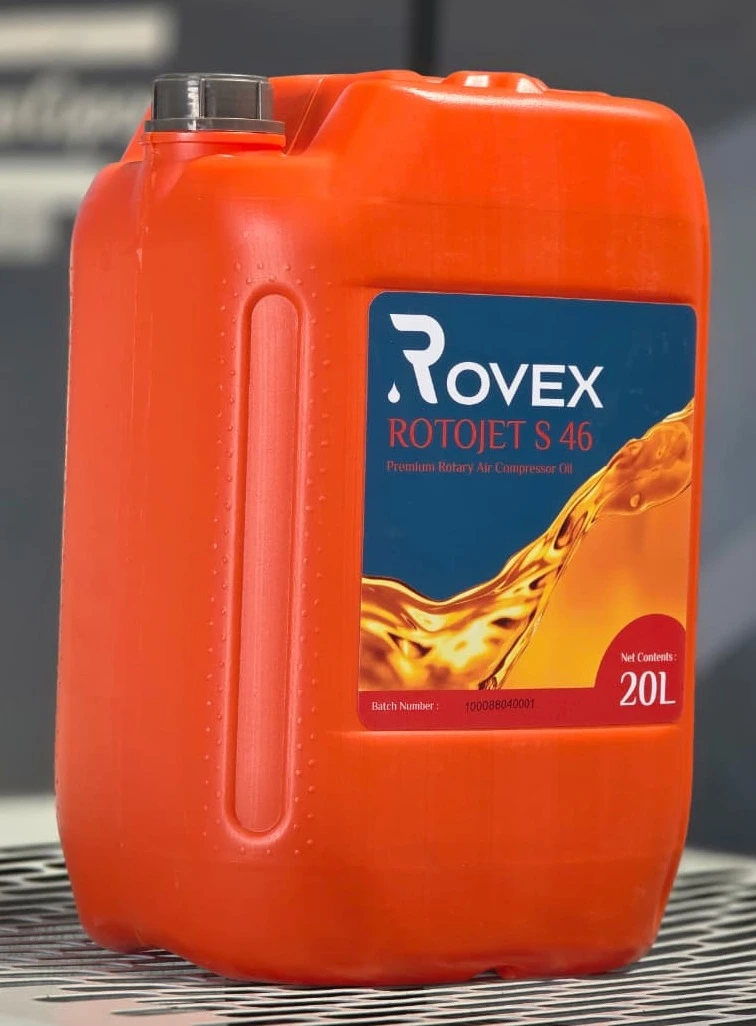

Rovex Rotojet S 46 (20 L)
Mineral-based ISO VG 46 compressor oil for oil-injected rotary screw compressors running 2,000-4,000 hours a year in mild to demanding conditions (ambient 0-35 °C). Viscosity 46 mm²/s at 40 °C, viscosity index 110, pour point -36 °C. Anti-wear and corrosion protection, good water separability, low foaming and low oil carry-over. Complies with ISO 6743-3 class L-DAH. Supplied in 20 L packs.
Rovex Rotojet Z 68 (20 L)
Fluid for the gearboxes and bearings of oil-free rotary screw compressors, equivalent to Atlas Copco Roto-Z. It does not enter the compression chamber. Technical data sheet available on request.
High-Efficiency Air Treatment

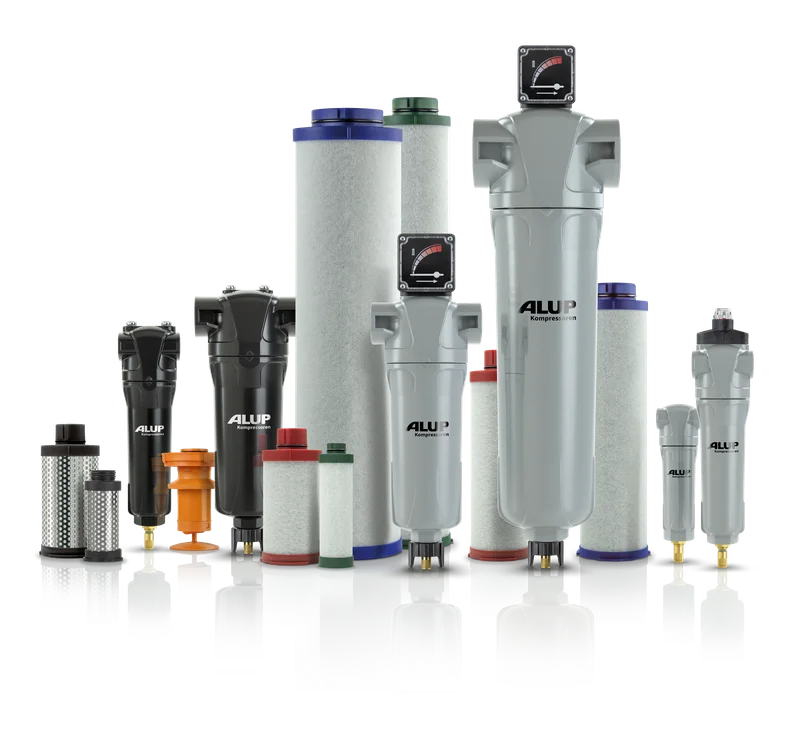

ALUP Compressed Air Line Filters
Engineered with next-generation deep-pleated media to safeguard pneumatic equipment, eliminate oil, water, and dust contaminants, and achieve certified ISO 8573-1:2010 purity with minimal differential pressure (<125 mbar).
Low Cost of Ownership & Certified Protection
- Ultra-Low Pressure Drop: Saturated differential pressure <0.125 bar across all coalescing grades.
- Robust Operating Conditions: Rated up to 120°C (248°F) operating temp & 20.7 bar (300 psig) pressure.
- Push-Fit Elements with Color Coding: Effortless maintenance with color-coded end caps for instant grade identification.
- Corrosion Protected: Durable electrophoretic cathodic coating tested for 1000h salt spray (ISO 9227).
Available Filtration Grades for Industrial Applications
Select the exact grade required for your facility from coarse pre-filtration to ultra-pure food and pharma standards
Particulate Pre-Filter
Protection against coarse particles and bulk contamination before fine filtration.
General Coalescing Filter
Coalescing filter for general industrial applications, removes liquid water and oil aerosols.
High Efficiency Oil Coalescing
Ultra-fine coalescing filtration for critical instrumentation, painting, and sensitive machinery.
Activated Carbon Vapor Adsorption
Oil vapor and odor removal for food, pharmaceutical, and high-purity air standards.
Particulate Dust Filter
Dry particulate filtration installed downstream of desiccant dryers.
High Efficiency Dust Filter
Sub-micron particulate filter guaranteeing Class 1 solid particulate purity.
| Size | Flow (m³/h) | Flow (l/min) | Flow (SCFM) | Conn. Size | Dimensions (A×B×C×E mm) | Weight (kg) | Element Model | Inquire |
|---|---|---|---|---|---|---|---|---|
| Size 1 | 10 | 168 | 6 | G 1/8" |
50 × 17 × 157 × 60 | 0.25 | F (Grade) 1 | |
| Size 2 | 25 | 414 | 15 | G 1/4" |
50 × 17 × 157 × 60 | 0.25 | F (Grade) 2 | |
| Size 3 | 42 | 702 | 25 | G 1/4" |
70 × 24 × 231 × 70 | 0.6 | F (Grade) 3 | |
| Size 4 | 54 | 900 | 32 | G 3/8" |
70 × 24 × 231 × 70 | 0.6 | F (Grade) 4 | |
| Size 5 | 85 | 1,416 | 50 | G 1/2" |
70 × 24 × 231 × 70 | 0.6 | F (Grade) 5 | |
| Size 6 | 119 | 1,986 | 70 | G 1/2" |
127 × 32 × 285 × 80 | 1.7 | F (Grade) 6 | |
| Size 7 | 144 | 2,400 | 85 | G 3/4" |
127 × 32 × 285 × 80 | 1.7 | F (Grade) 7 | |
| Size 8 | 178 | 2,964 | 105 | G 1" |
127 × 32 × 285 × 80 | 1.7 | F (Grade) 8 | |
| Size 9 | 212 | 3,534 | 125 | G 3/4" |
127 × 32 × 371 × 80 | 2 | F (Grade) 9 | |
| Size 10 | 297 | 4,950 | 175 | G 1" |
127 × 32 × 371 × 80 | 2 | F (Grade) 10 | |
| Size 11 | 476 | 7,932 | 280 | G 1 1/4" |
140 × 40 × 475 × 80 | 3 | F (Grade) 11 | |
| Size 12 | 545 | 9,084 | 321 | G 1 1/2" |
140 × 40 × 475 × 80 | 3 | F (Grade) 12 | |
| Size 13 | 765 | 12,750 | 450 | G 2" |
170 × 53 × 508 × 100 | 4.9 | F (Grade) 13 | |
| Size 14 | 1189 | 19,818 | 700 | G 2" |
170 × 53 × 708 × 100 | 5.5 | F (Grade) 14 | |
| Size 15 | 1444 | 24,066 | 850 | G 2 1/2" |
220 × 70 × 736 × 100 | 10.5 | F (Grade) 15 | |
| Size 16 | 1529 | 25,482 | 900 | G 3" |
220 × 70 × 736 × 100 | 10.5 | F (Grade) 16 | |
| Size 17 | 2125 | 35,418 | 1250 | G 3" |
220 × 70 × 857 × 100 | 11.5 | F (Grade) 17 | |
| Size 18 | 2550 | 42,498 | 1500 | G 3" |
220 × 70 × 1005 × 100 | 12.5 | F (Grade) 18 |
| Model | Flow | Conn. | Dim. (mm) | Kg |
|---|---|---|---|---|
| WS 1 | 10 m³/h (6 cfm) | G 1/8" |
50 × 157 | 0.25 |
| WS 2 | 25 m³/h (15 cfm) | G 1/4" |
50 × 157 | 0.25 |
| WS 3 | 42 m³/h (25 cfm) | G 1/4" |
70 × 231 | 0.6 |
| WS 4 | 59 m³/h (35 cfm) | G 3/8" |
70 × 231 | 0.6 |
| WS 5 | 85 m³/h (50 cfm) | G 1/2" |
70 × 231 | 0.6 |
| WS 6 | 119 m³/h (70 cfm) | G 1/2" |
127 × 285 | 1.7 |
| WS 7 | 212 m³/h (125 cfm) | G 3/4" |
127 × 285 | 1.7 |
| WS 8 | 297 m³/h (175 cfm) | G 1" |
127 × 285 | 1.7 |
| WS 9 | 476 m³/h (280 cfm) | G 1 1/4" |
140 × 475 | 3 |
| WS 10 | 545 m³/h (321 cfm) | G 1 1/2" |
140 × 475 | 3 |
| WS 11 | 1189 m³/h (700 cfm) | G 2" |
170 × 508 | 4.9 |
| WS 12 | 1444 m³/h (850 cfm) | G 2 1/2" |
220 × 413 | 8 |
| WS 13 | 2550 m³/h (1500 cfm) | G 3" |
220 × 413 | 8 |
| Pressure (barg) | Pressure (psig) | Correction Factor |
|---|---|---|
| 4 bar | 58 psig | 0.76 |
| 5 bar | 72 psig | 0.84 |
| 6 bar | 87 psig | 0.92 |
| 7 bar | 100 psig | 1.00 |
| 8 bar | 115 psig | 1.07 |
| 10 bar | 145 psig | 1.19 |
| 12 bar | 174 psig | 1.31 |
| 14 bar | 203 psig | 1.41 |
| 16 bar | 232 psig | 1.51 |
| 20 bar | 290 psig | 1.60 |
Original ALUP Spare Parts & Consumables
Every component is factory certified to withstand extreme operating pressures and high ambient temperatures.
Original ALUP FluidTech Lubricant (4000h)
Special formulation engineered to protect screws, bearings, and seals in high operating conditions.
High-Efficiency Air/Oil Separator Cartridge
Multi-layer microglass media ensures residual oil content in compressed air is strictly below 3 mg/m³.
Heavy Duty Air Intake Filter Element
99.9% filtration efficiency down to 3 microns. Engineered for dusty industrial environments.

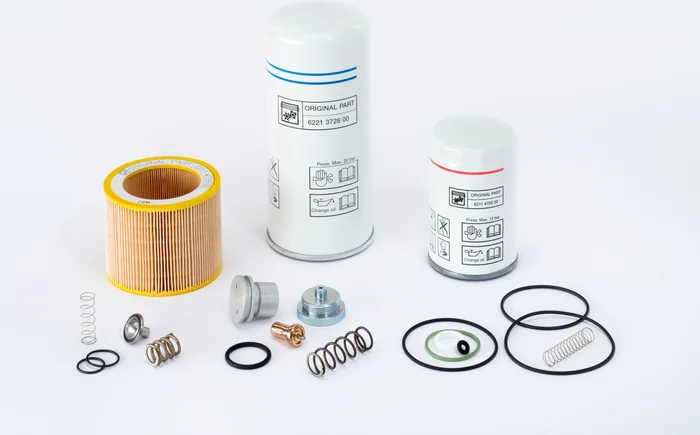

ALUP 8000h Preventative Maintenance Service Kit
Includes oil filter, air filter, separator cartridge, thermostatic valve kit, MPV seals, and drain overhaul parts.

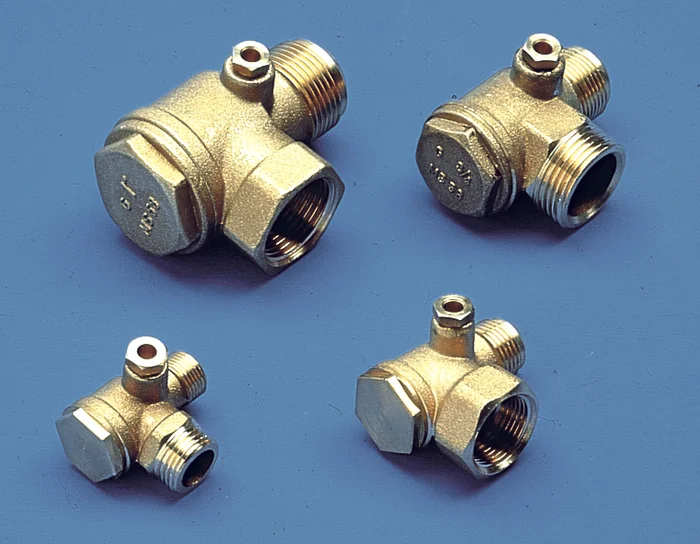

Minimum Pressure Valve (MPV) & Check Valve Kit
Maintains optimal internal system pressure for continuous lubrication and acts as an airtight non-return check valve.
High Precision Coalescing Line Filter Cartridge (0.01 µm)
Removes microscopic oil aerosols and liquid moisture before sensitive downstream pneumatic instruments and packaging lines.
Service Agreements Built for Zero Unplanned Downtime
Flowva Air service engineers in Ismailia and 10th of Ramadan manage your machinery maintenance schedule with precision.
Routine Inspection Plan
Periodic technical checks, belt/motor alignment, safety valve calibration, and operational health diagnostics.
- Scheduled 250h & 500h diagnostic visits
- Basic air leak & pressure check
- Detailed technical service log report
Preventative Maintenance Contract
Turnkey scheduled maintenance including all 2,000h, 4,000h, and 8,000h genuine ALUP service kits, labor, and emergency standby.
- All genuine service kits & lubricants included
- Priority emergency response: engineer on site within 24 h down to 4-6 h, by package
- Full manufacturer warranty preservation
Plant Air & Energy Audit
Ultrasonic compressed air leak detection, pressure drop profiling, and electrical kilowatt-hour measurement.
- Pinpoint expensive piping distribution leaks
- Detailed electrical power-to-flow data logging
- Documented energy saving (kWh) for variable speed conversion
Industrial Air Compressor & Generator Rental
Facing sudden factory breakdown, scheduled plant overhauls, or seasonal summer production surges? Flowva Air supplies turnkey rental units delivered and connected directly to your header.
- Electric screw compressors (11 kW up to 160 kW)
- Mobile diesel generators for standby & prime field power
- Complete plug-and-play packages with air dryers, hoses & cabling
- Prepared and dispatched from our 10th of Ramadan office & Ismailia workshop
Immediate Breakdown Support?
Call our hotline to report a breakdown; our engineers schedule the site visit based on your location and service contract.
